The Forerunners of a Vast Network

It was not until 1836—the year before Queen Victoria's accession—that the railway as we understand it first entered London. This was the initial section of the London and Greenwich Railway between Spa Road and Deptford ; and it was the first occasion on which the locomotive ran over a railway proper in the London district.

There had, however, been earlier attempts to run a railway of one kind or another. Trevithick had, in 1808, operated one over a circular track forming part of the site of the present Euston Station. A public railway on which traction was by horses had also been opened for traffic in the Metropolitan area as early as 1803.

This pioneer, the "Grand Surrey Iron Railway," took the place of a scheme to construct a canal between Wandsworth and Croydon. The River Wandle was then the busiest river of its size in Europe. There were nearly forty factories and mills on its banks, giving employment to three thousand people.

But the scheme to make a canal from Wandsworth to Croydon interfered with vested interests, and it was abandoned. The plan for a railway took its place.

AN EARLY LOCOMOTIVE, which ran on London's first railway from London to Greenwich, Built for the South Eastern Railway, the overall length of the engine and tender was 36 ft. 4 in. The cylinders measured 15 in. by 18 in. and the drivers 5 ft. 6 in.

The promoters lost no time, and on May 21, 1801, the Royal Assent (the first of its kind, since Parliamentary sanction was not needed for the early colliery railways in the north of England) was given to the Company's Act. From the beginning, it was planned as a public railway—that is, one catering for the needs of the community instead of merely serving the purposes of a private owner. From that standpoint the Surrey line is a landmark in transport history, although it did not cater for passenger traffic.

The original scheme provided for a line from Croydon to Wandsworth, with short spurs to various factories on the route, and a branch to Hackbridge, Surrey. It was opened for traffic on July 26, 1803, and cost about £7,000 a mile. The original capital was £55,000. The track was composed of plate rails with inner and outer flanges, supported on stone sleepers.

THE GREENWICH RAILWAY IN 1837. The railway approached the capital along a viaduct 3-3/4 miles long. This viaduct consisted of 878 brick arches. These were mostly of 18 ft. span, and 22 ft. high. The Greenwich Railway was opened for traffic in 1836.

Although the whole of the track has long since disappeared, the line at the time was regarded as so successful that a new company obtained an Act of Parliament in 1803 to extend the system to Godstone, via Merstham, and also to build a branch to Reigate. This undertaking, however, stopped at Merstham, mainly because the construction costs were considerably in excess of the estimates, and the whole of the "vast and important undertaking," as it was called in a contemporary account, was acquired by the London, Brighton and South Coast Railway under its Act of 1837. Traffic on the section between Wandsworth and Croydon ceased on August 31, 1846, and the last of the track was taken up in 1848.

On the other hand, the London and Greenwich is still an important link in the main English system. This line was planned in 1832 and secured its Act of Parliament in the following year, when the public was asked to subscribe £400,000 in £20 shares. Construction began in 1834. The initial section was carried on arches ; despite the wintry weather and heavy gales, nearly 500 arches had been built by July, 1835. On January 19, 1836, notwithstanding the collapse of two arches the previous day, two special trains, "conveying Cambridge scientists," were run between Spa Road and Deptford.

The public opening of this section took place on February 8, and it is on record that the receipts for the first week were £17, and for the second £31. Part of this money was derived from the public, who walked along the line on Sundays, when—owing to an initial shortage of locomotives—no trains were run.

EUSTON STATION IN 1837. The station at Euston Square was then the London terminus of the London and Birmingham Railroad. This was the second railway to come to London.

The first engines were of the 2-2-0 type, with four-wheeled tenders ; later, six-wheeled "singles" came on to the line. The owners ceased to work the undertaking in 1845, when it was leased to the South-Eastern (now a part of the Southern group), but the company continued in existence until the grouping in 1923.

Apart from being the first steam-operated railway in the Metropolitan area, the London and Greenwich has a further claim to distinction. So far as can be ascertained, the first signal box in the world was built at its Corbett's Lane Junction, Southwark. This was erected in 1839, when the London and Croydon Railway was amalgamated with the London and Greenwich system. London's second railway was the London and Birmingham, subsequently to be absorbed into the London and North Western, which, in its turn was absorbed in the London, Midland and Scottish group. The section to Boxmoor, Herts, was opened on July 20, 1837. Locomotives were not at first used throughout, but attached to or detached from the trains at Chalk Farm, whence the descent to Euston down the 1 in 70 gradient was by gravity. In the reverse direction, haulage was by stationary engines and by endless ropes, two and a half miles in length and costing £460 each. Until well on in the present century, "double-heading" was still the usual practice for express trains working out of Euston, for which purpose a pilot engine was maintained on a siding south of the tunnel approach to Euston. These pilots were generally detached at Willesden Junction, but an exception to the use of the second engine was made with trains hauled by the Webb compounds.

KING'S CROSS TO-DAY is one of the largest railway stations in Great Britain, having seventeen platforms with a total length of 10,866ft. Many famous expresses to and from Scotland use King's Cross. The picture to the right shows the famous "Queen of Scots" waiting at the platform.

But for the conservatism of the London and Birmingham directors, the line would have been the first to make regular use of the electric telegraph. As early as 1837 Cooke and Wheatstone had made successful experiments between Euston and Camden with this means of communication. The directors refused to allow them to extend the system, and the inventors brought the idea to the Great Western, which adopted the device, and installed it between Paddington and West Drayton, Middlesex, in 1839. By 1843, the wires reached as far as Slough. Two years later the installation was instrumental in securing the arrest at Paddington of John Tawell, who had committed a murder near Slough in Buckinghamshire. He had escaped on the next train, only to be met by the police on his arrival at London. This is one of the first, if not the first, recorded instances of the use of the telegraph in capturing a criminal.

London was definitely placed on the railway map in 1838, since in addition to the completion of the London and Birmingham, the first sections of the London and Southampton (later London and South Western) and of the Great Western were opened. Traffic on the former system began in May between Nine Elms, Wandsworth, and Woking, Surrey. The extension to Waterloo was not brought into use until 1848. This is one of the few instances in which the original London terminus of a main line afterwards became its goods station. Bricklayers' Arms is another. For many years Nine Elms was the site of the South Western's locomotive shops, but these were eventually transferred to Eastleigh, near Southampton.

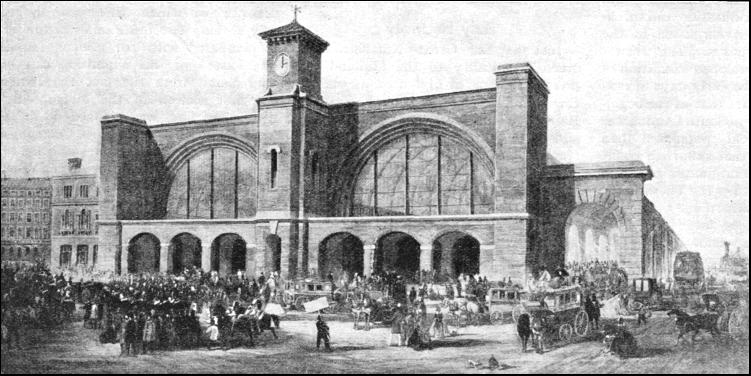

KING'S' CROSS YESTERDAY provides a striking contrast to the illustration above. The scene shows the opening of the terminus of the Great Northern in 1852. The Great Northern Railway was merged with the L.N.E.R. in 1923.

The scheme for a combined terminus at Euston—the station was to have been shared by the Great Western and the London and Birmingham lines—was not the only project for a London "union station" that failed to materialize. In the early days of railways, the proposal was put forward for a joint central terminus, preferably in the West End, that would house the trains of as many companies as might care to make use of it. This came to nothing, but many of the London termini, in addition to King's Cross and St. Pancras, accommodated for years the trains of more than one system. For instance, both the Great Western and the London and North Western ran suburban services in and out of Victoria, that of the latter company going as far afield into "foreign" territory as Croydon, while for some years a London, Brighton and South Coast locomotive used to haul an express out of Paddington every week-day. These and many other services have vanished, partly on account of track congestion, and partly because they were suspended during the war, and it has not been thought necessary to revive them.

With the exception of Waterloo and London Bridge (Brighton section), all the London termini were north of the river. Owing to the engineering difficulties involved in bridging the Thames, many of the stations were not finished until years after the railways by which they were owned had entered London. These delays may serve to explain, at least in part, why the scheme for a central union station, so common in the United States, never came to fruition. It is true that both Victoria and London Bridge served two companies prior to grouping, but each had its own approach lines, so that Victoria was in fact two stations, while London Bridge, including the low-level portion, represented three distinct structures.

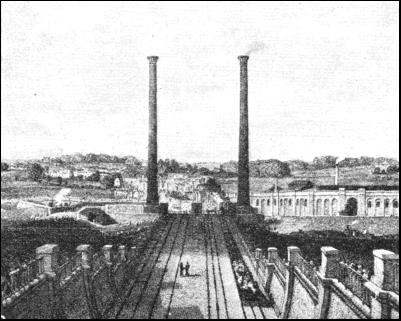

THE APPROACH TO EUSTON STATION IN 1837. Trains were originally worked down the incline by gravity, and when leaving Euston they were hauled up by stationary engines and endless ropes, two and a half miles long, each costing £460.

Some of the best known London stations were opened at a much later date than is realized by the majority of the passengers who use them regularly. Thus, while Bricklayers' Arms was inaugurated as the South Eastern's "West End passenger station" as early as 1844, Charing Cross was not opened until twenty years later, four years before Victoria. The latter was originally provided with both broad and narrow gauge tracks, since the Great Western was a joint owner of the property, and used the station as a southern suburban terminus. The South Eastern's Cannon Street followed in 1866 ; and Holborn Viaduct, owned by the rival London, Chatham and Dover, was not available before 1874 ; and St. Paul's not until ten years later.

It has often been asked why the Brighton, Chatham, and South Eastern should have required so many termini, when the South Western, which was much the largest undertaking of the four, contented itself with one. The answer lies partly in the long rivalry between the South Eastern and Chatham, which for duration and intensity has never been surpassed in the history of our railways. The answer is also in the undeveloped condition of road transport in the early days of railways ; and in the fact that at the beginning of the railway era Soutli London was so much more thickly populated than the north and west that suburban traffic on a large scale first originated from and to the districts south of the Thames. To this day the Southern's suburban network is far more considerable than that of any of the other railway groups, and the geographical lay-out of the system renders a considerable number of termini a convenience, if not a necessity. They also make it possible to devise alternative "paths" in the event of the regular track being unusually congested, an operating condition that has been found particularly advantageous in connexion with Continental Boat Trains.

The second main line from the north to reach London was the Great Northern, whose King's Cross Station was opened to traffic in October 1852. Like its near neighbour, St. Pancras, the terminus was originally built with a single-span roof, but that at King's Cross was of wood. It was not until 1887 that timber was finally replaced by metal.

THE IMPOSING ENTRANCE TO EUSTON as it appeared when the station was the terminus of the London and Birmingham Railway. A scheme to make the station the joint terminus of the London and Birmingham and Great Western Railways failed to materialize.

St. Pancras itself was relatively late in materializing. The Midland had reached London by February 1, 1858, but the whole of the journey was not over its own metals, which terminated at Hitchin, Herts, whence the trains ran over the Great Northern's lines to King's Cross. St. Pancras was not opened until October 1868. The need for the company to possess a station of its own had become urgent long before then. It is recorded that in 1862 nearly 3,500 trains suffered more or less serious delay on the short section between Hitchin and King's Cross; and since this naturally affected the trains of the Great Northern, the latter company gave the Midland notice to quit its temporary terminus at the King's Cross coal depot. St. Pancras itself incidentally serves as the top floor of the largest beer barrel warehouse in the world, the passenger station forming the roof of the warehouse.

Just as the Great Northern had given hospitality to the Midland, so was St. Pancras at first used as one of the terminals of the Great Eastern Railway. This line, which was originally laid on the 5 ft. gauge and converted to standard in 1845, did not open Liverpool Street Station until February 1874, but trains began to run into St. Pancras in July 1870. Up to 1874 the principal Great Eastern terminus was at Shoreditch, half a mile out of Liverpool Street, now a large and busy goods depot.

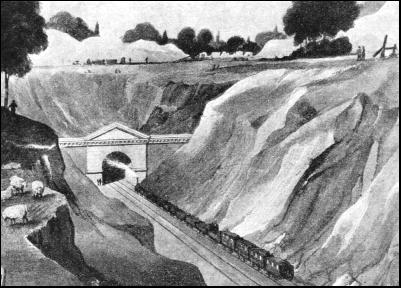

WATFORD TUNNEL as it was when the London and Birmingham Railway first gained access to London. The tunnel was built to avoid spoiling the estates of two powerful landlords who opposed the railway's passage across their property. The original survey was carried out by Robert Stephenson, the son of the famous George Stephenson.

The ramifications of the London Underground system that grew out of the Metropolitan's short parent stem from Paddington to Farringdon Street have already been dealt with on another page. But it may be mentioned here that the Metropolitan and its associate the Metropolitan District have other claims to distinction besides inaugurating underground travel. They were the first to build a circle railway, a lay-out subsequently adopted in Paris and Glasgow. The first lines were originally constructed as short urban systems which subsequently extended into open country. The Metropolitan and the Metropolitan District were pioneers in electrification, and in the installation of automatic signalling.

The immense expansion both in the size and population of London since the second half of last century has been due partly to this underground network, of which there are to-day only seventy-two route miles in tunnel, as compared with 101 above ground. The extent of this expansion can be appreciated from the fact that when the first section of the Metropolitan Extension line was opened in 1868 from Baker Street to Swiss Cottage, a great part of Hampstead was then so rural that cows used to be driven down the Finchley Road past Swiss Cottage Station every evening.

The population of Hendon, which was only 29,000 in 1907, when the Hampstead Tube did not extend beyond Golders Green, had risen to 116,000 when the last census was taken.

The year 1840 saw the opening of the London and Blackwall Railway, which was originally built on the 5 ft. gauge and used cable traction. This method was decided on because the line ran through densely populated areas, and it was thought that locomotives would be too dangerous, owing to the "burning coke flying about among the roofs of the contiguous houses."

The ropes, which weighed about forty tons each, and were called on to travel over 300 miles a day, were worked by stationary steam engines of marine pattern. On this line as many as 101 trains were operated a day.

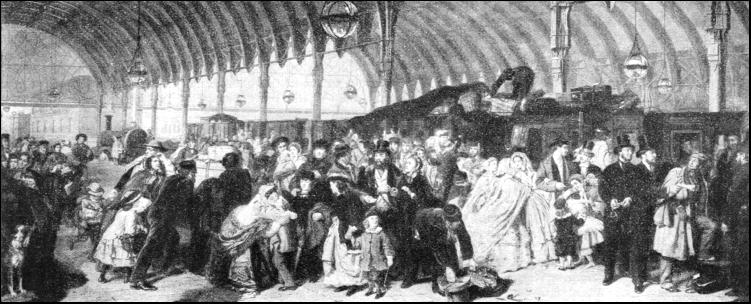

PADDINGTON IN 1862 from a famous painting by W. P. Frith, R.A, The Great Western's terminus was designed by the Company's engineer, Isambard Brunel. The station replaced the original in 1854, the reconstruction costing £534,000. The interior of the principal part of this station when completed was 700 ft. long and 238 ft. wide.
